EVOLVE SCAN INTRAORAL SCANNER
A High-Tech Scanner with an Ergonomic Design

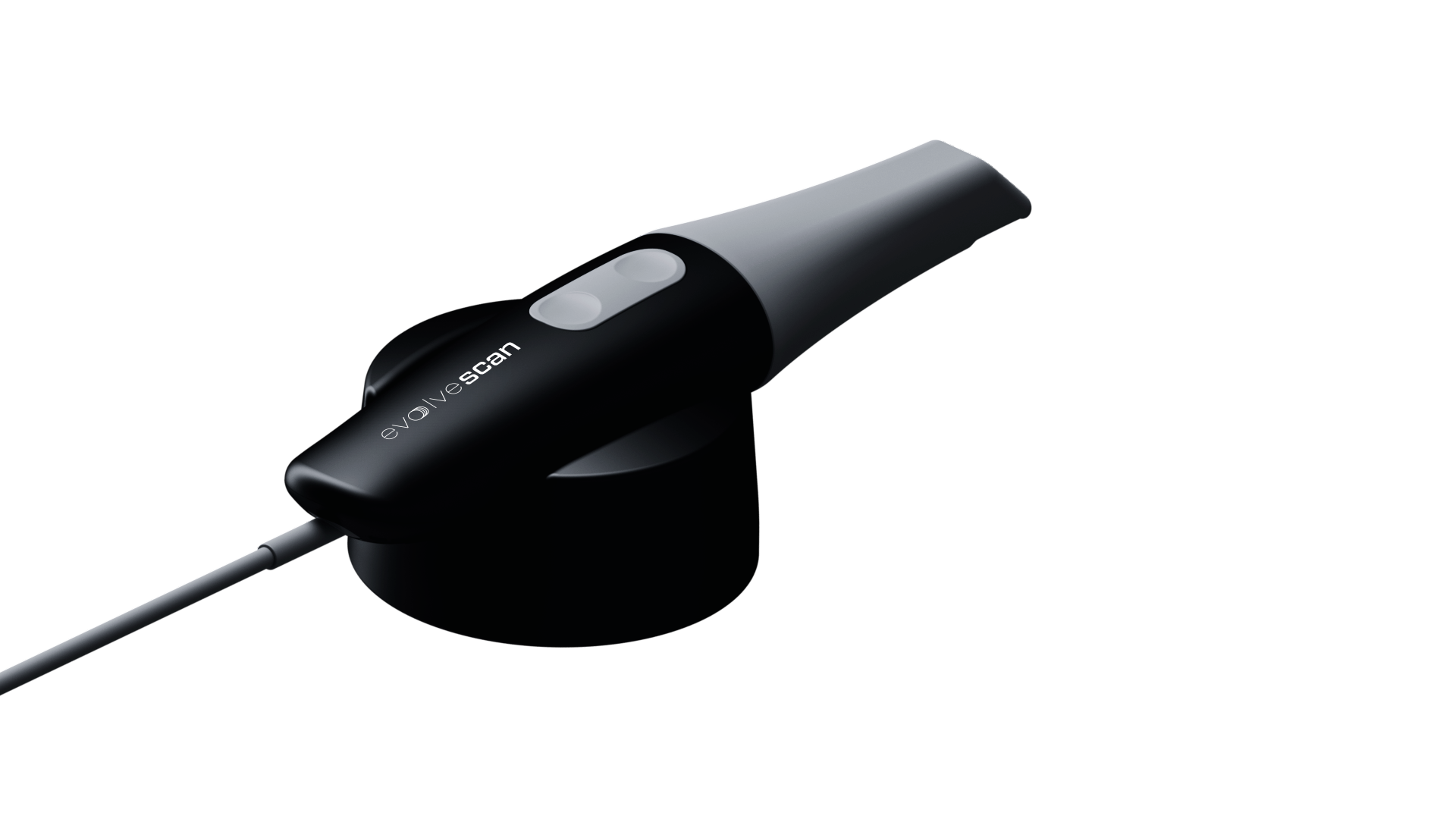

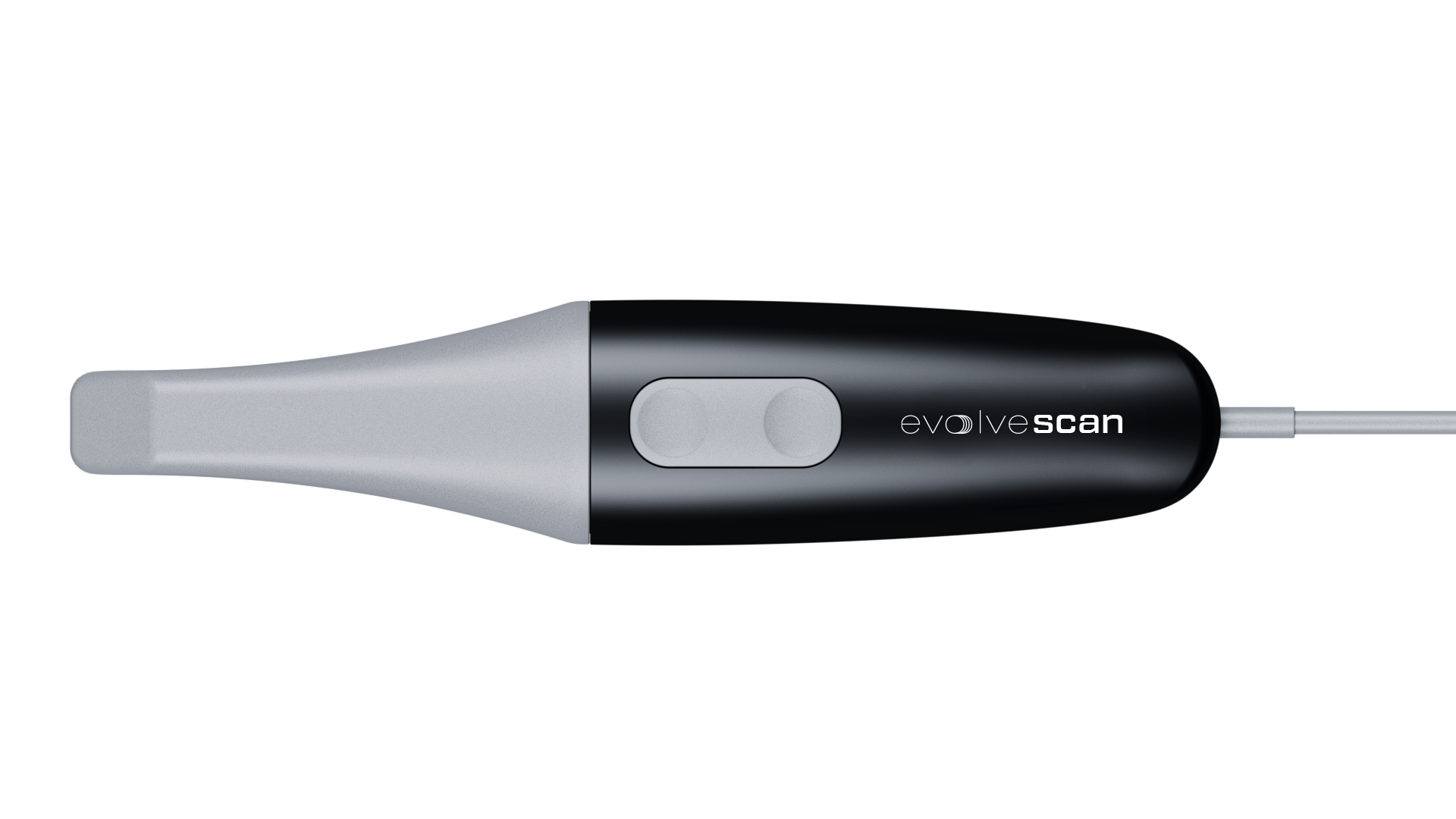

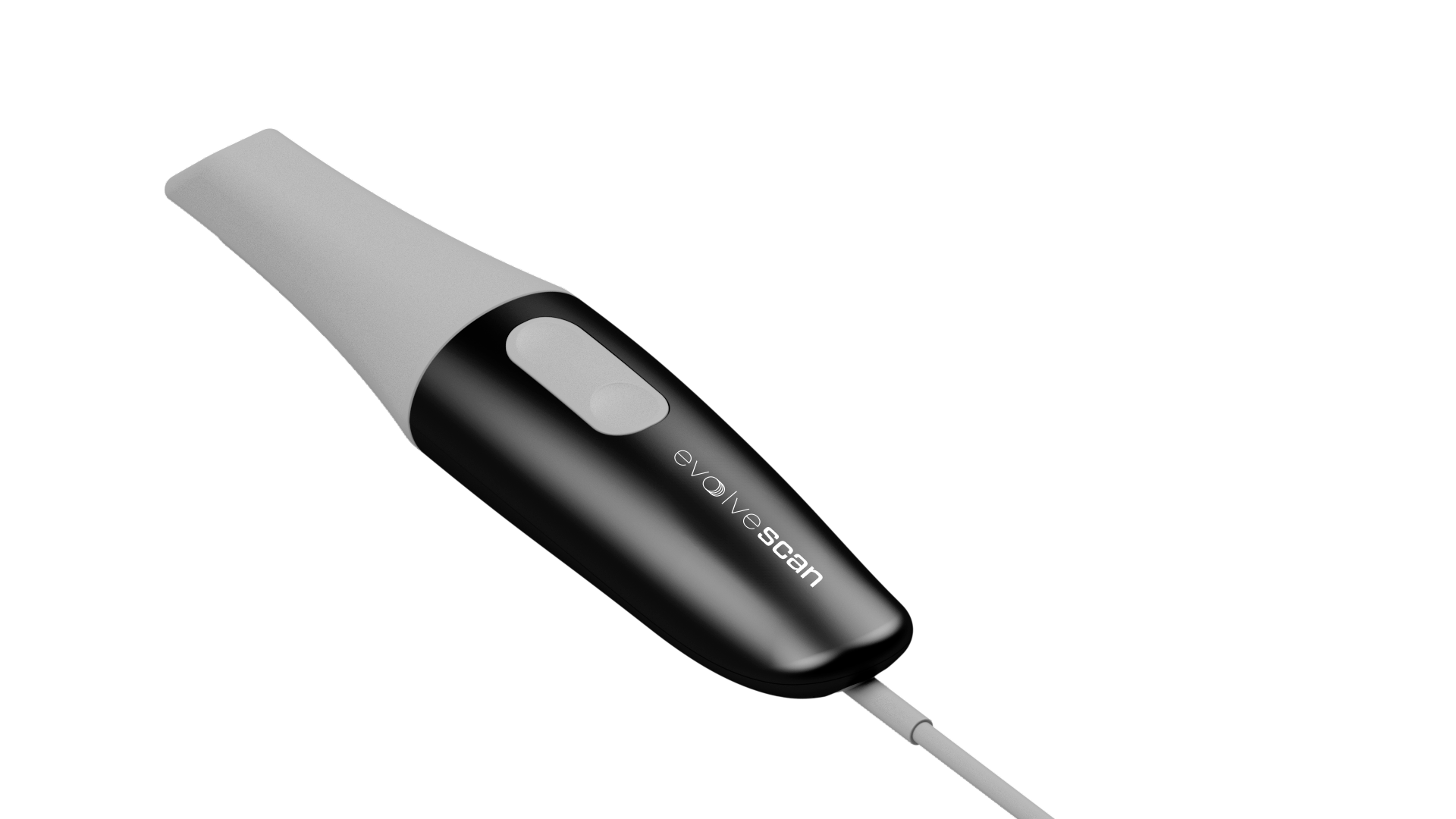

Evolve Scan Intraoral Scanner
Evolve Scan is Dabi Atlante’s new intraoral scanner, 100% produced in Brazil.
With a focus on lightness, precision, and fluidity, the Evolve Scan weighs just 119g and scans a complete arch in just 59 seconds, making it one of the fastest on the market. It features autoclavable tips with a durability of up to 250 cycles, a single, detachable USB cable, a heat-free anti-fog system, and artificial intelligence (FLOW AI), providing an intuitive and efficient digital experience.
It’s the ideal device for clinics looking to improve their workflows with greater agility, comfort, and predictability. It also allows dentists to present the treatment plan visually and clearly to patients, contributing to a safer, more reliable journey with a higher acceptance rate.
Welcome to the new era of intraoral scanning
Why Evolve Scan?
Comparative Software

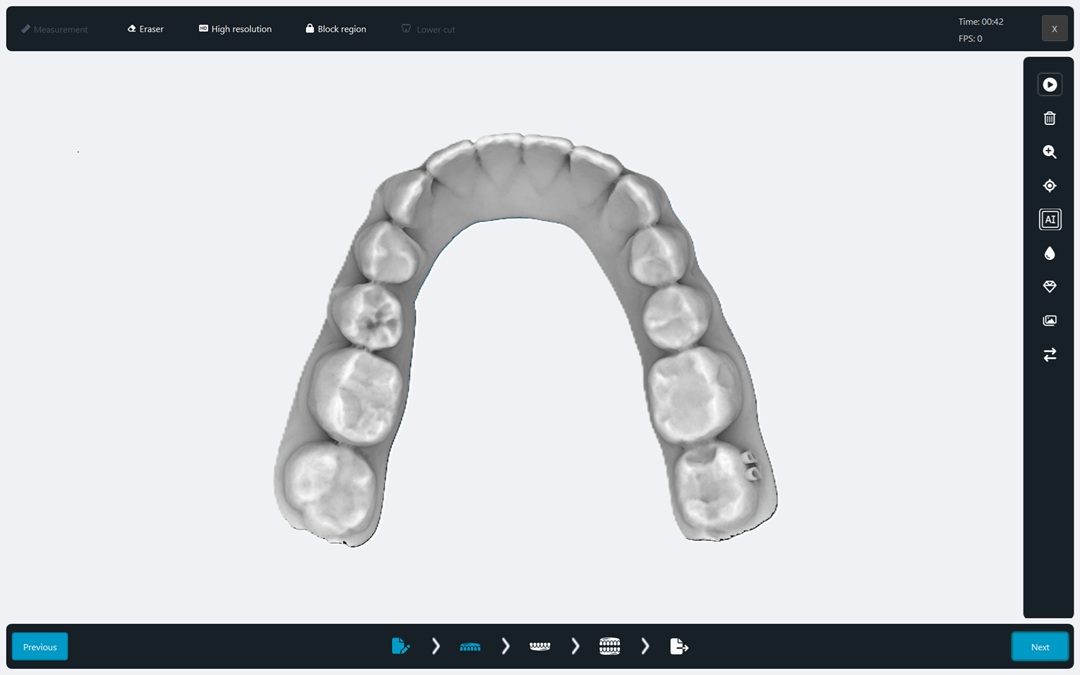

Before

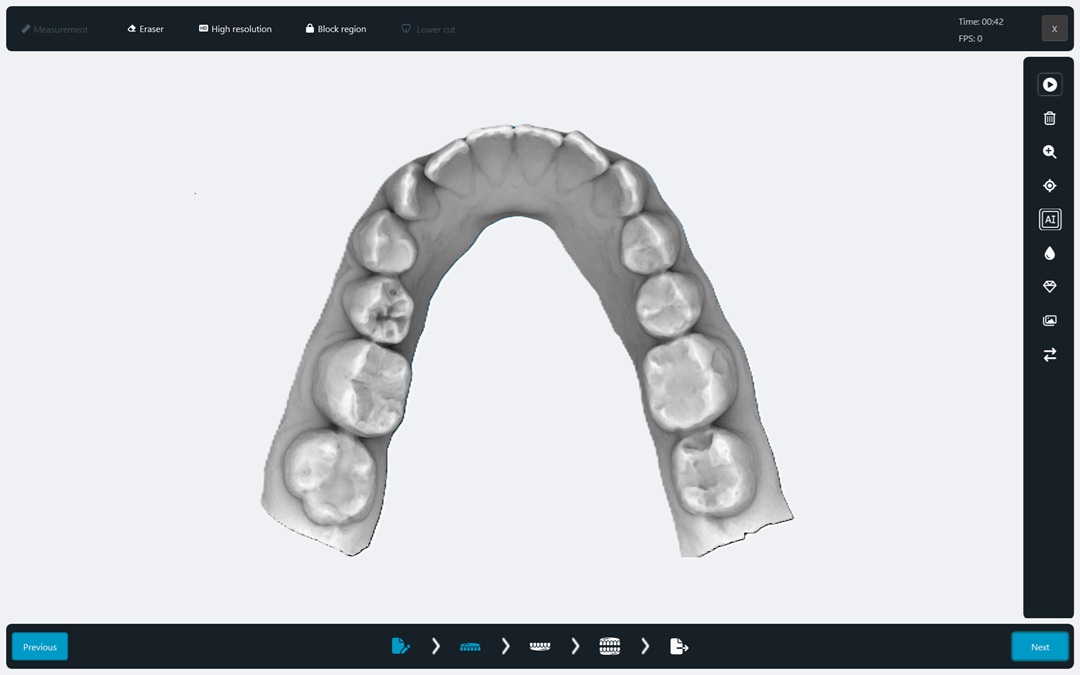

After

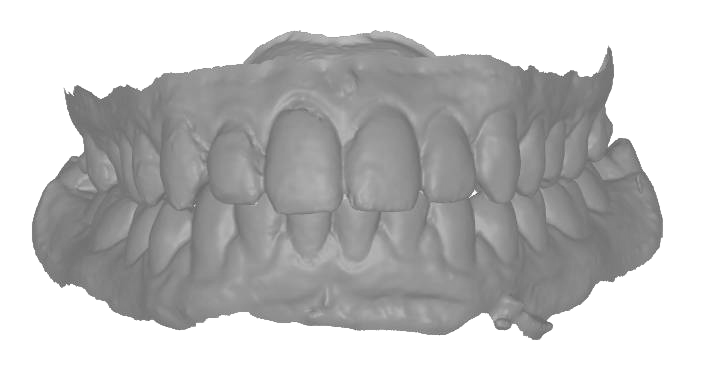

STL

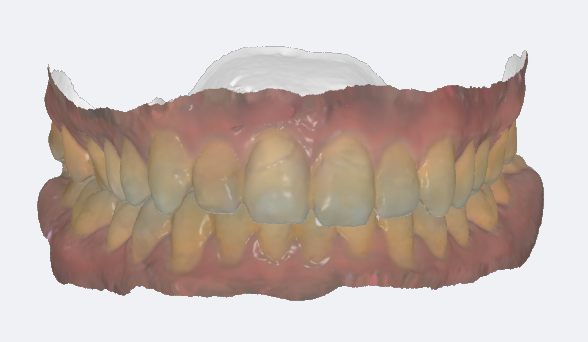

PLY

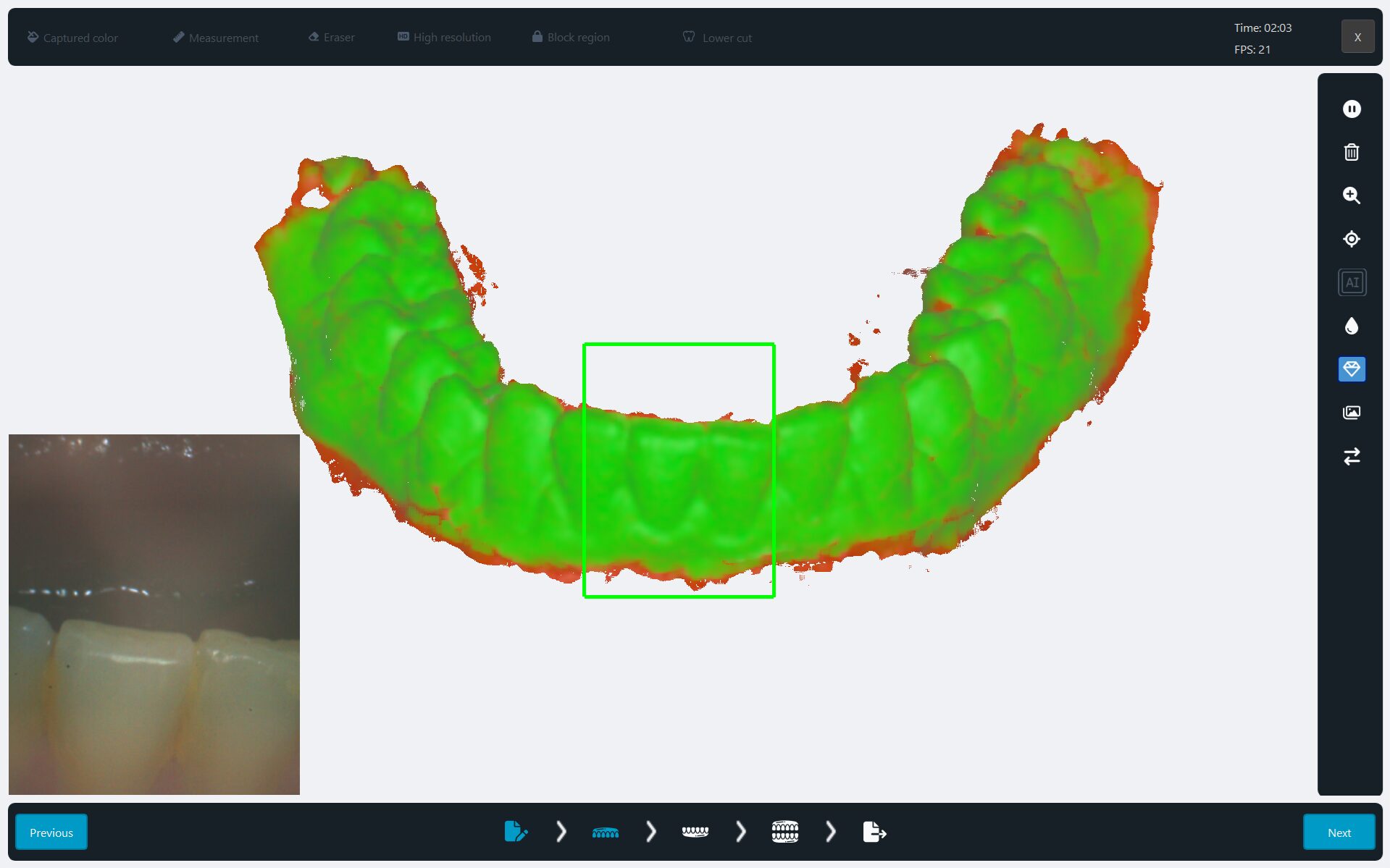

Quality Map

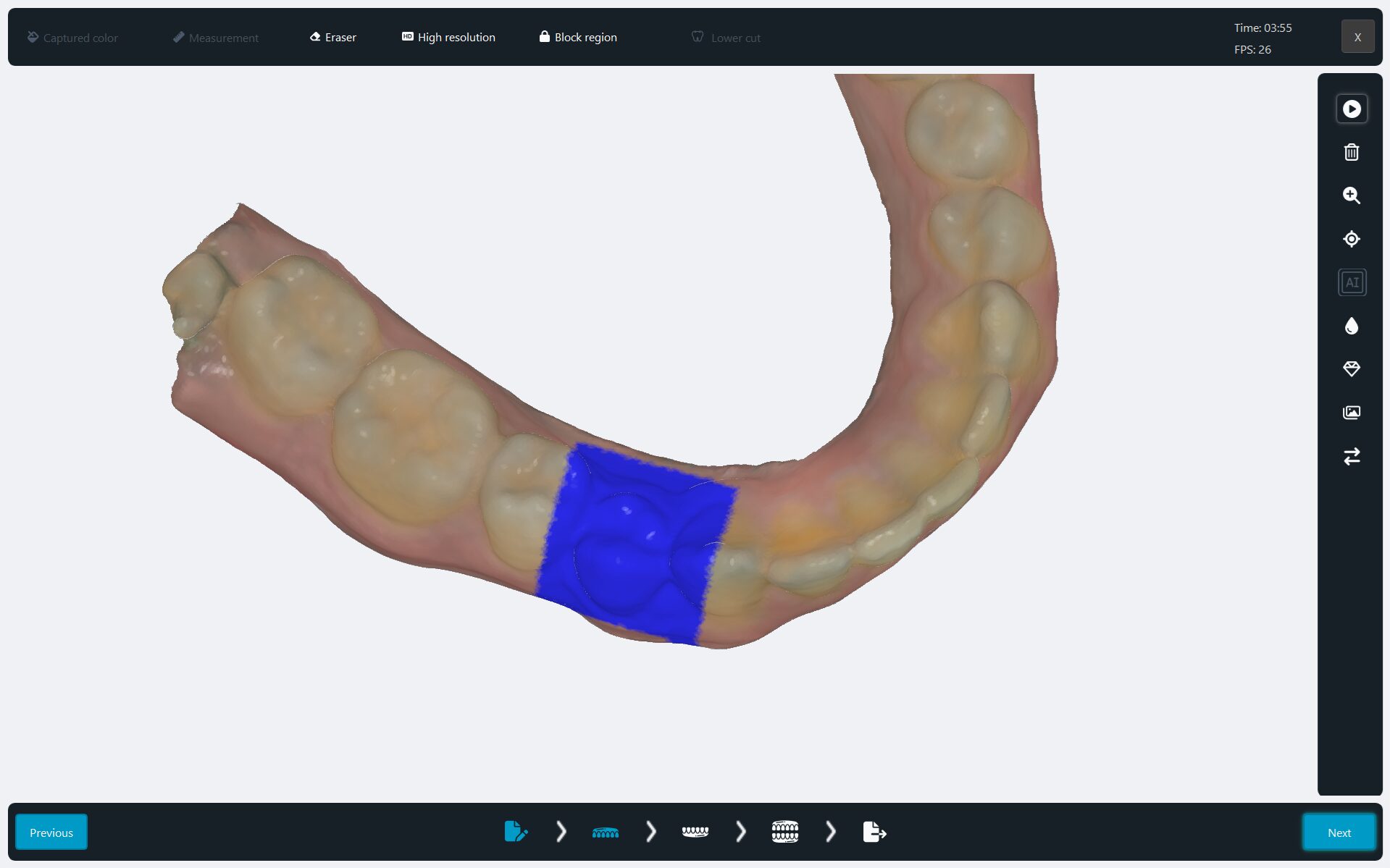

Focus in HD

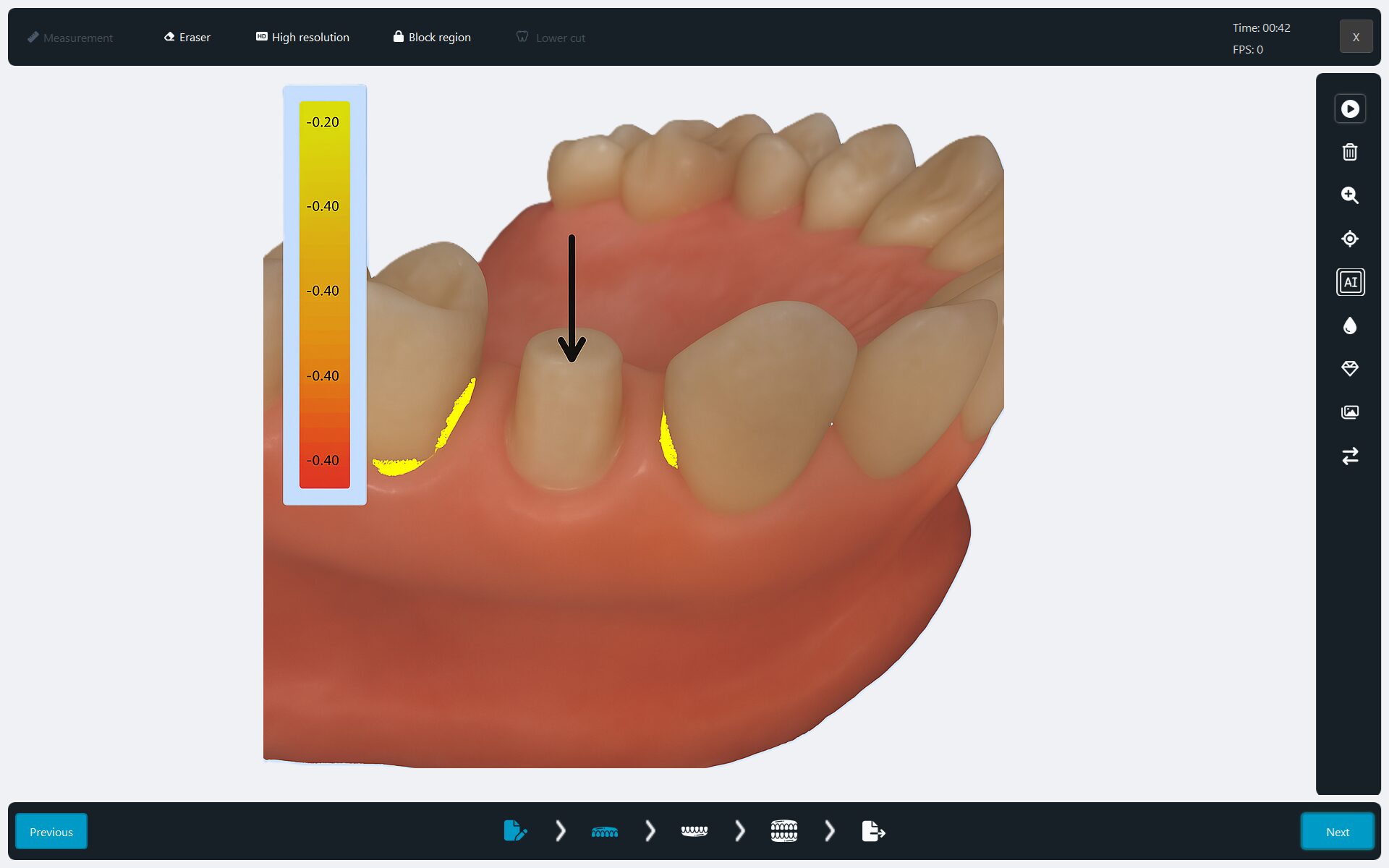

Retention Analysis

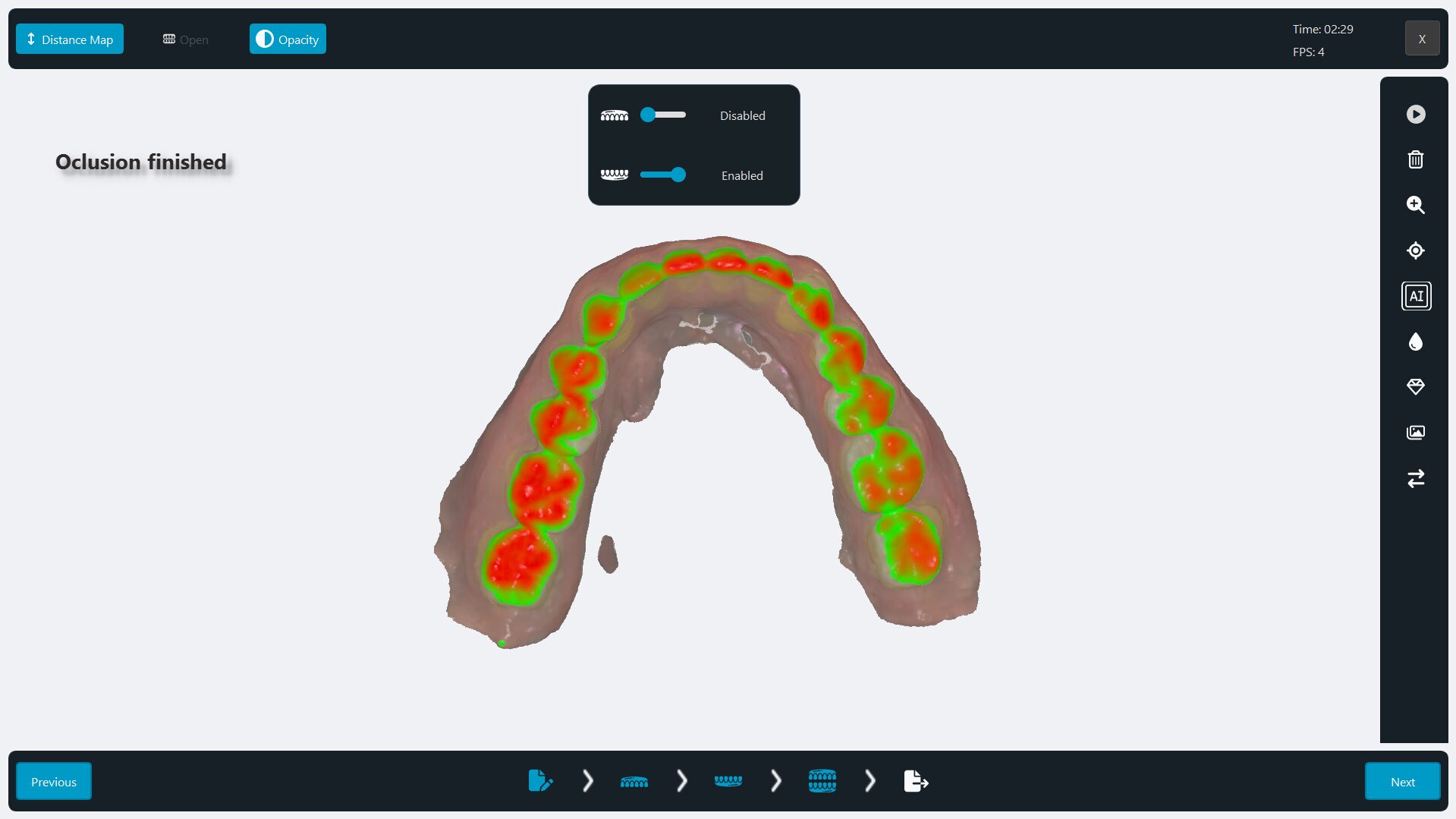

Occlusion Map

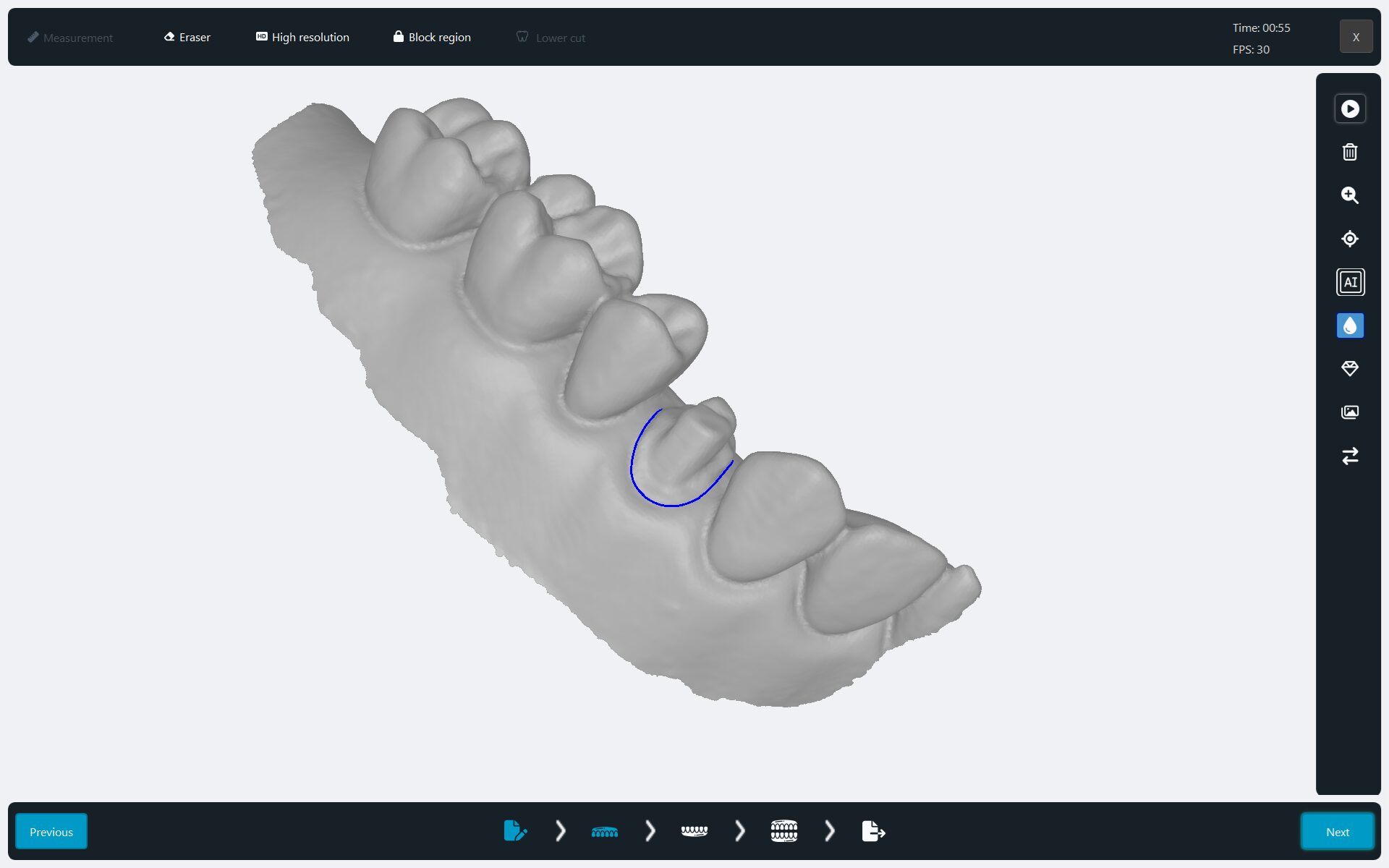

Delimitations of preparation terms
Specifications:
|
SCANNER TYPE |
Handheld scanner that creates optic impressions for dental restorations |
|---|---|
|
BASE DIMENSIONS |
L x W x H: 306 mm x 98 mm x 72 mm |
|
SCANNER DIMENSIONS |
L x W x H: 256 mm x 43 mm x 43 mm |
|
WEIGHT |
119 g |
|
CABLE LENGTH |
3 m |
|
SCANNER TIPS |
Reusable up to 250 times, autoclavable (follow the instructions in the User Manual) |
|
HEATING ELEMENT |
Low-energy, heat-free defogging |
|
SENSOR TECHNOLOGY |
CMOS |
|
COLOUR |
Yes, 24bits (8bits per channel) |
|
SCANNING FREQUENCY |
30 FPS (Frames Per Second) |
|
FIELD OF VIEW |
12 mm x 14 mm |
|
ILLUMINATION |
LED – HIGH POWER |
|
ELETRICAL INPUT |
5V DC, 100-240V AC, 50-60Hz |
Scanning Process:
|
DENTAL PREPARATION |
No need to use spray or powder |
|---|---|
|
SCANNING PRINCIPLE |
Continuous and accumulative scanning digitalization, with depth and colour data |
|
TOOTH-SENSOR DISTANCE |
0 – 20 mm |
|
COMPUTER-SCANNER INTERFACE |
USB 3.0 cable |
Software:
|
EVOLVE IOS SOFTWARE LICENSE |
Free with Evolve Scan scanner system, no annual fee |
|---|---|
|
GENERATED ARCHIVES FORMAT |
STL, PLY, OBJ |
|
COMPATIBILITY WITH CAD/CAM SYSTEMS |
Open files, compatible with all open CAD/CAM systems on the market |
Computer Configuration (Minimum Requirements):
|
CPU |
Intel i7 or i9 13th/14th Gen, Minimum 24MB Intel® Smart Cache |
|---|---|
|
CPU CLOCK |
2.8 GHZ or superior |
|
RAM MEMORY |
16 GB or superior (DDR4 or superior) |
|
GPU |
NVIDIA graphics processor Laptop: NVIDIA RTX4060 or higher, 6 VRAM or higher |
|
SSD |
M2 SSD with at least 512 GB and 50gb free or more |
|
USB PORT |
At least 1 USB 3.0 port |
|
OPERATING SYSTEM |
Windows 10 Pro or superior |
