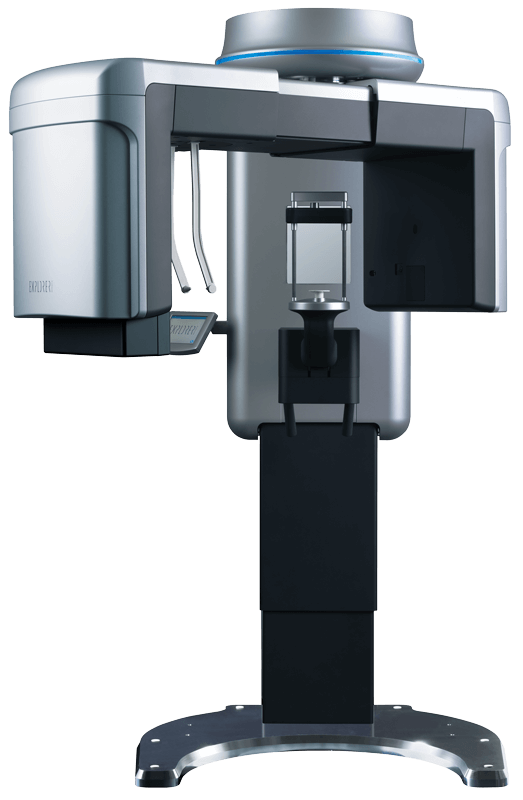

The powerful system components of the PreXion3D EXPLORER enable an extraordinary combination of the most precise 3D imaging, large image detail, low radiation exposure, reliable diagnostics and digital planning for all indications in modern dentistry, including periodontology, endodontics, implantology, orthodontics and maxillofacial surgery, among many others.

Why the PreXion 3D Explorer?

The powerful system components of the PreXion3D EXPLORER enable an extraordinary combination of the most precise 3D imaging, large image detail, low radiation exposure, reliable diagnostics and digital planning for all indications in modern dentistry, including periodontology, endodontics, implantology, orthodontics and maxillofacial surgery, among many others. Its patient management system is designed for secure and networked communication of patient data across multiple rooms within a practice and can be integrated into the existing infrastructure with ease.

The PreXion 3D Explorer PRO is poised to revolutionize dental imaging with its unmatched clarity and boundless capabilities.

Key Features:
– Innovative built-in ceph arm design freeing over 2 feet of space
– 0.3×0.3mm focal spot – the smallest in the industry
– Multiple fields of view (FOV) ranging from 5×5 to 15×16.
– Low dose, HD and endo CT modes with scan times of 20 seconds or lower
– 14-second pano and 16-second ceph scan times

Software Features

With the precision and professional competence of PreXion, dental professionals have a powerful partner at their side.

Multi-data – Load multiple patient scans on a single screen. Synchronize pre- and post-operative scans and detect differences slice by slice.

Patient Education and Presentation – Quickly capture 3D animated video clips for patient education and lecture presentations. Increase case acceptance through better patient understanding.

Collaborative Tools – Automatically save 3D image reports to an MS Word template and attach to patient’s practice management record. Collaborate with referring dentists by burning a patient disc with the sample viewer. Capture and email images quickly.

Remote Access – Work on cases from home or a satellite office without long connectivity delays. Lead virtual treatment planning meetings remotely with PreXion3D.

Thin Client Server – PreXion3D CBCT scanners do not require computer hardware upgrades. Their software does not slow down network bandwidth like other CBCT scanners.

Implant Library – Use our extensive library or customize your own.

Save Scenes – Save your case workup as a scene or create multiple saved scenes with a single scan.

3D Templates – Save time with over 20 pre-made 3D volume rendering templates or customize your own.

Slab and Cutting – Slab feature allows the clinician to see inside structures while rotating the 3D image. Cut away structures to see exactly what is pertinent to your case.

CLINICAL APPLICATIONS

• Implant placement surgery

• Endodontics

• Periodontics

• Orthodontics

• Oral-maxillofacial surgery

• TMJ treatment

• Pathology

• Impacted and supernumerary teeth

• DICOM export for implant surgical guides & CAD/CAM integration

• Airway analysis

HIGHLIGHTS

• Accurate 360-degree gantry rotation

• 260-1,024 projected views

• Dedicated 2D pan mode option

• Clearest detail with 0.3mm focal spot & 0.08-0.2mm voxel

Fields of View

The PreXion3D EXPLORER PRO provides an accurate 360˚ panoramic perspective from 523 to 1,024 projected views. In addition to the 3D analysis function for image detail sizes of 5x5cm, 10x10cm, 15x10cm, and 15x16cm, the device features “True” and “Reconstructed” panorama modes. It impresses with its ease of operation, comprehensive planning programs and imaging software across all dental indication areas.

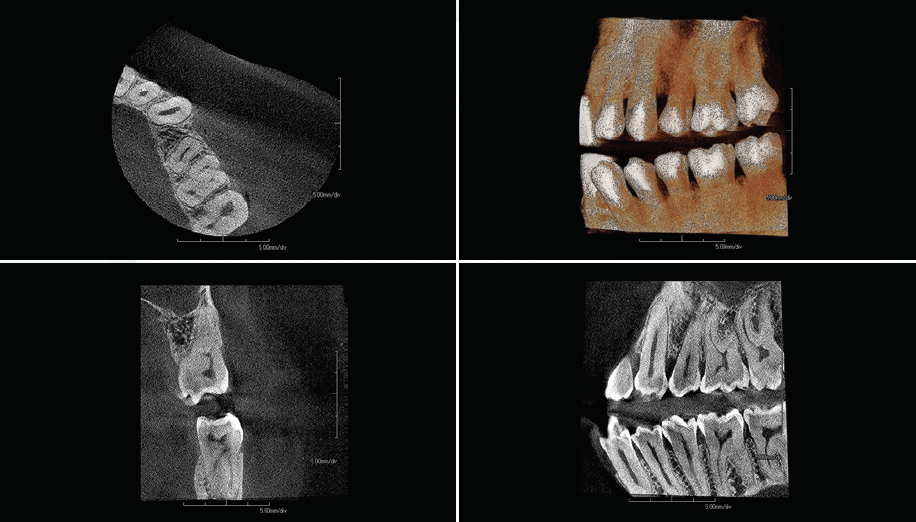

5x5cm

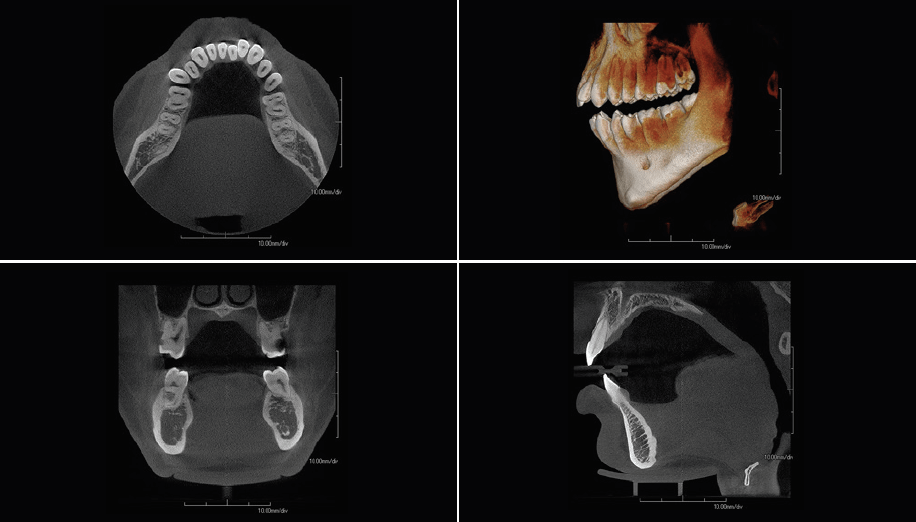

10x10cm

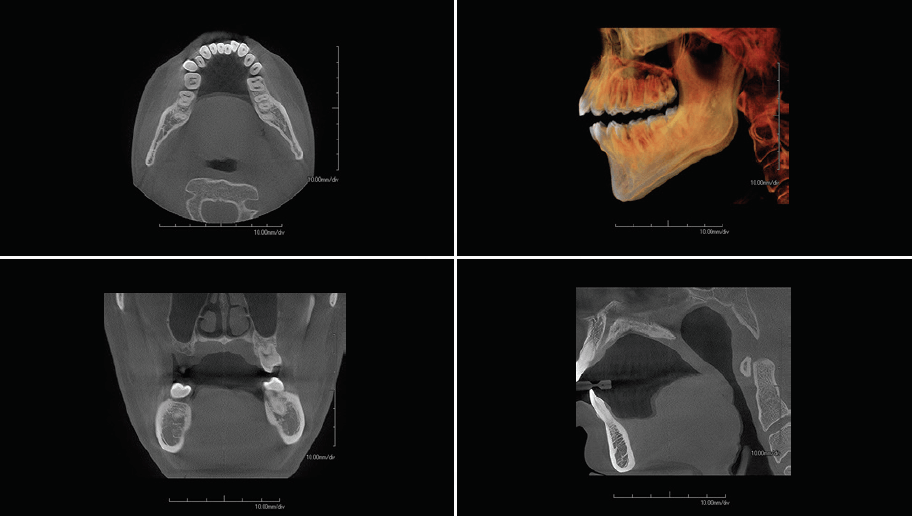

15x10cm

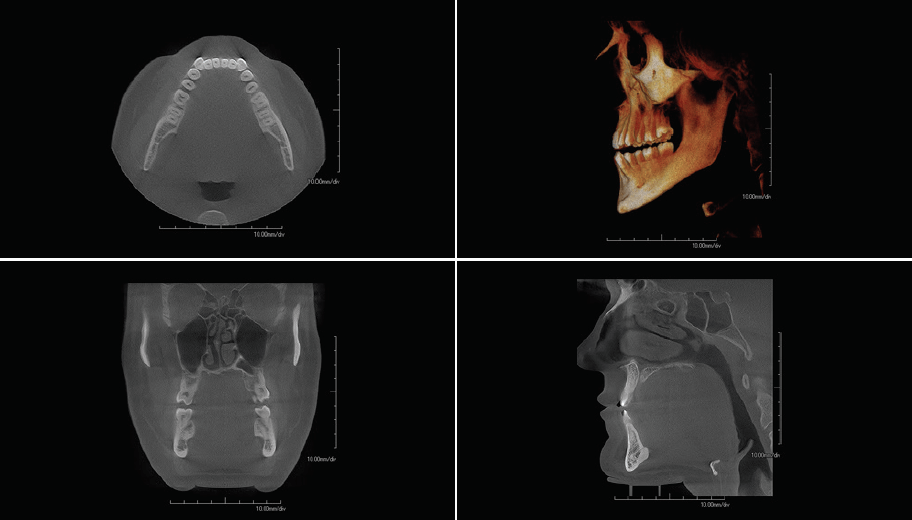

15x16cm
(single pass)

Focal Spot

The PreXion 3D EXPLORER PRO utilizes the smallest focal spot in the industry at 0.3mm for all FOVs, and voxel sizes ranging from 0.07mm to 0.3mm in order to maintain image quality. The output in ultra-HD with a small voxel size enables a more detailed representation of even the finest structures.

What is a focal spot?

The focal spot, also called focus, is the area on the target of the X-ray tube which is struck by the electron stream and emits X-rays. The larger the focal spot’s area, the poorer the detail of the image. The PreXion3D EXPLORER PRO has a 0.3mm focal spot – the smallest in the industry.

What is a voxel?

A combination of the words “volumetric” and “pixel,” a voxel is a three-dimensional volume element shaped like an isometric cube. The PreXion3D EXPLORER PRO offers powerful imaging software with a voxel size of only 0.07mm, ensuring a detailed rendering.

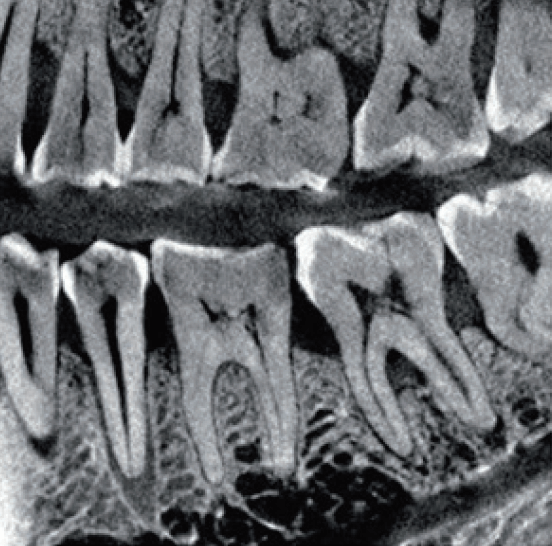

5x5cm FOV
0.5mm Focal Spot

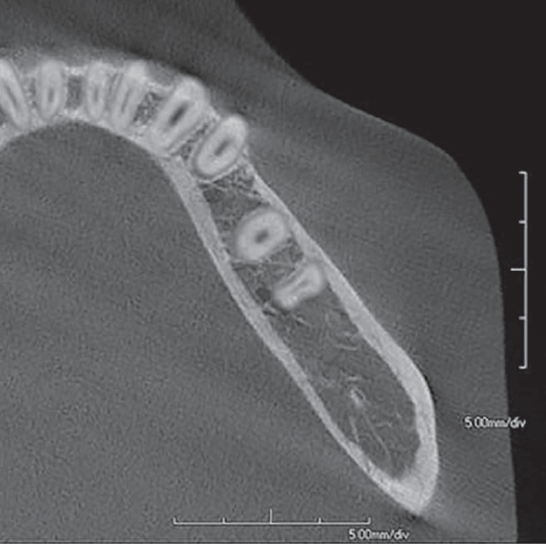

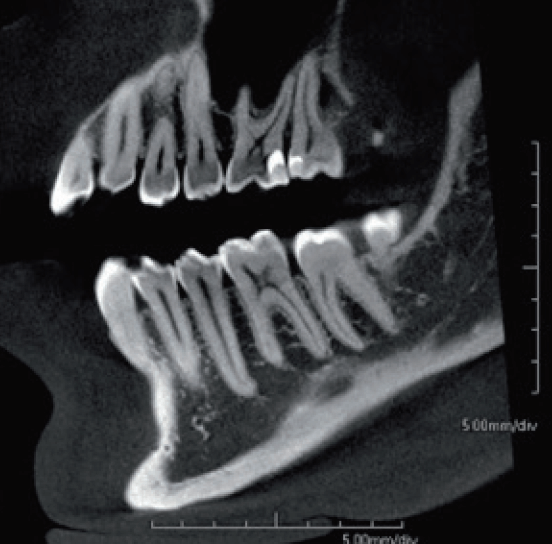

10x10cm FOV
0.3mm Focal Spot
5x5cm FOV
0.07mm Voxel Size
5x5cm FOV
0.1mm Voxel Size

Scan Mode

Low Dose Mode10 seconds
High Definition Mode (HD)18 seconds
Endo Mode20 seconds
Panoramic Standard Mode14 seconds

Specifications

Device TypeCone Beam Computed
Tomography System, Head/Neck
Focal Spot0.3 mm x 0.3 mm
Tube Voltage90–110 kV
Tube Current1–5.3 mA
Total Filtration2.7 mm AI
Voxel Size0.07 mm, 0.1 mm, 0.2 mm, 0.3 mm
FOVTeeth: 5x5 cm
Arch: 10x10 cm
Full: 15x10 cm
Face: 15x16 cm
